Correcting belt misalignment issues and ensuring smooth operation. dependable tracking performance that works autonomously to correct belt misalignment when it occurs.

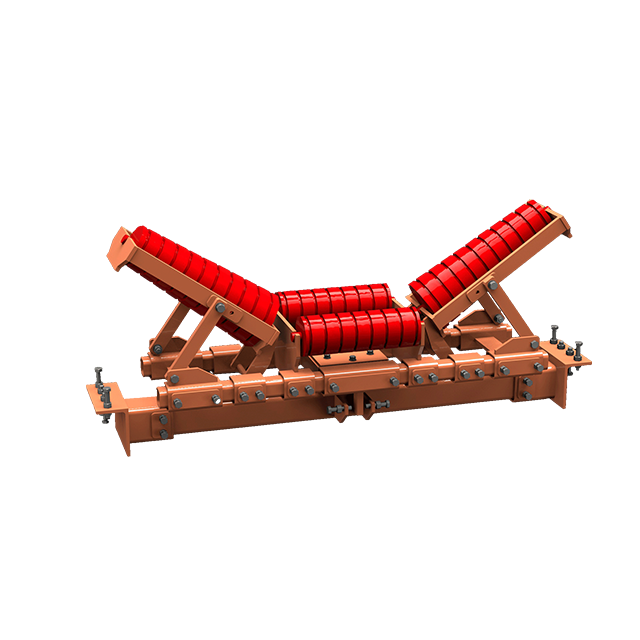

The trough-shaped alignment device operates through a highly precise mechanism to ensure the conveyor belt runs smoothly along a predetermined path, thus preventing material spillage and conveyor belt damage. Here are the working principles, main components, and characteristics of the device:
Working Principle:
When the conveyor belt begins to deviate to one side, the trough-shaped alignment roller detects the deviation through its special trough-shaped design. This design allows the roller to generate a subtle tilting force when the belt deviates, guiding the conveyor belt back to its central position. Through the automatic tilting adjustment of the roller, the conveyor belt is effectively guided, thereby avoiding potential issues caused by deviation.
Main Components and Features include:
1.Alignment Roller: Typically located at both ends of the conveyor belt, used to sense and correct the belt's deviation.
2.Trough-shaped Design: The surface of the alignment roller has a trough-shaped design, which helps more effectively guide the conveyor belt back to the center.
3.Brackets and Adjustment Mechanisms: Used to install the alignment roller and allow for fine-tuning to ensure proper contact and angle adjustment with the conveyor belt.
4.Sensor System: Monitors the position and movement status of the conveyor belt in real time; once a deviation is detected, the alignment mechanism is immediately activated.
Advantages:
1.Automatic Adjustment: No manual intervention required, capable of automatically correcting deviations in real time.
2.High Efficiency: Quickly responds to deviations, reducing downtime caused by conveyor belt misalignment.
3.Strong Adaptability: Suitable for conveyor belts of different widths and speeds, widely used in various industrial occasions.
4.Extended Equipment Life: Reduces mechanical wear and tear and tearing caused by belt deviation.
Application Scenarios:
1.Mining: Maintains belt stability in the conveyance of ores and other heavy loads.
2.Chemical Industry: Ensures even material conveyance in processing industries such as chemicals.
3.Logistics and Warehousing: Ensures efficient and accurate material handling on automated conveyor lines in storage and logistics.
Due to its simple structure, low maintenance costs, and ease of operation, the trough-shaped alignment device is widely used in various industrial production lines. It is an effective tool for enhancing production automation and reducing manual intervention.
Correction system for different installation position, different bandwidth, different working condition we provide a variety of models of corrections with a customized solution to solve the belt misalignment issues on your conveyor belts.
Features:
• Easy installation, maintenance-free, no contact with the conveyor belt edge
• Rollers operate reliably without vibration, suitable for various working conditions
• Can be used for all types of conveyor belts, Install inside or at the bottom of the conveyor belt
• Smooth operation, safety, easy maintenance
